SURGICAL SET

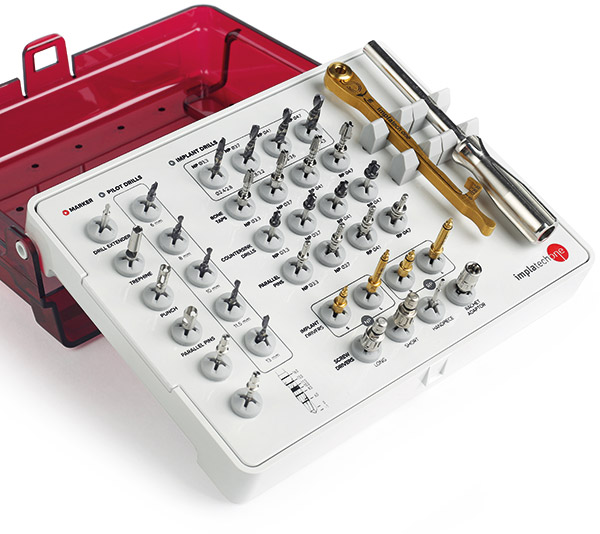

The ImplatechOne surgical cassette is made of a material called Radel®, which is resistant to high temperature and pressure and has international medical certifications. This material, which is compatible with sterilization conditions and repeated use, does not corrode and can be cleaned very easily.

The surgical set includes all kinds of equipment you may need during the operation.

You can transfer the implant to the implant site you prepared, either by hand, with a ratchet, or with your implant motor. The longer hand driver, which enhances success and ease of use, provides more comfort to dentists, especially when working on lower quality (D3-D4) bones in the maxillary area.

The ratchet design, which stands out with its special monoblock production with titanite coating, allows for easy cleaning and safe use and can meet high sterilization conditions.

IMPLANT DRILLS AND PARALEL PINS

2 mm Pilot Drill with Stoper
2 mm Pilot Drill with Stoper L: 6 mm
2 mm Pilot Drill with Stoper L: 8 mm
2 mm Pilot Drill with Stoper L: 10 mm
2 mm Pilot Drill with Stoper L: 11.5 mm
2 mm Pilot Drill with Stoper L: 13 mm
Implant Drills
Implant Drills Ø 2.4 / 2.8
Implant Drills Ø 2.8 / 3.2
Implant Drills Ø 3.2 / 3.6
Implant Drills Ø 3.6 / 3.9
Implant Drills Ø 4.0 / 4.5
Paralel Pins
Paralel Pins Ø 2.0
Paralel Pins Ø 3.3
Paralel Pins Ø 3.7
Paralel Pins Ø 4.1
Paralel Pins Ø 4.7
Marker Drill
Marker Drill
Drill Extension
Drill Extension

The burs produced with Carbon and Titanite coating technology prevent corrosion compared to burs produced from different raw materials, and by reducing the friction coefficient, this coating increases sharpness and surface hardness. While these advantages extend the life of the bur, it also prevents micro-necrosis areas that may occur in preparation sites where burs contact the bone.

CORTICAL BONE DRILLS

Countersink Drills
Countersink Drills Ø 3.3
Countersink Drills Ø 3.7
Countersink Drills Ø 4.1
Countersink Drills Ø 4.7
Bone Taps
Bone Taps Ø 3.3
Bone Taps Ø 3.7
Bone Taps Ø 4.1
Bone Taps Ø 4.7

Depths are indicated by the laser marking method on this black coating surface. While depth lines can be seen very clearly on the coating, pilot burs are designed with stoppers for safe and easy surgery.

SURGICAL SET TOOLS

Torque Ratchet
Torque Ratchet
Hand Driver
Hand Driver
Implant Drivers*
Implant Drivers
Implant Drivers
Implant Drivers
Implant Drivers
Screw Drivers
Screw Drivers
Screw Drivers
Screw Drivers
Adaptor
Adaptor
Trephine
Trephine
Punch
Punch

FROM HAND DRIVER TO OSTEOTOME

Parallel pins and implant drills match precisely and they fit perfectly to the implant preparation site.

You can make the osteotomy compatible with your implant and create solutions for cases with insufficient bone (sinus lifting) using the hand driver adapter and parallel pins that perfectly fit one another.

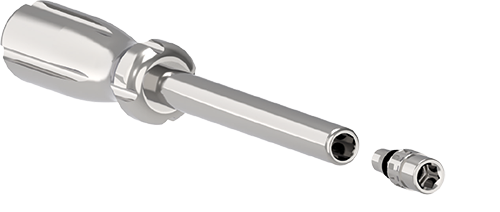

Mount the adapter on the hand driver.

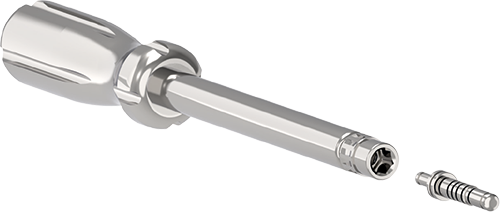

Mount the parallel pin on the hand driver with the adapter, the part to be placed in the cavity facing forward.

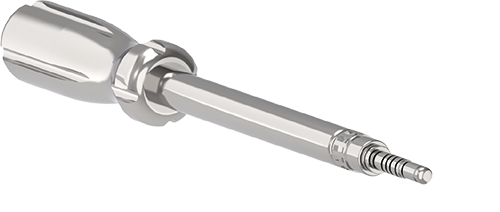

You can safely use your osteotomy surgical tool that is compatible with your implant drill and implant system.
